Model：S32-64
Capacity：6400mAh
Voltage：11.1V
Battery composition：6 x 18650 cells (3S2P)
Features:
Highest available energy density
SMBus&SBDS Rev 1.1 compliant
Cell balancing and Prolong battery life
Comprehensive charging/ discharging and passive safety systems
Low power system design
SMBus communication function
Specification
|
Nominal Capacity |
6400mAh |
|
Nominal Voltage |
11.1V |
|
Max Charge Voltage |
12.6V |
|
Max Charge Current |
4480mA |
|
Cont. Discharge Current |
6500mA |
|
Pulse Discharge Current |
20000mA |
|
General cycle Life(25±2℃) |
300times |
|
Operating Temperature |
Charge: 0-45℃ Discharge: -20-60℃ |
|
Storage Temperature |
-20-60℃ -20-20℃ Recommend |
|
Dimension |
L: 151mm W:59mm T:22mm |

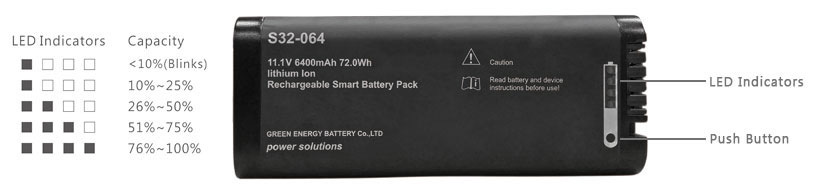

The inner battery packs can display the capacity information by using the push button. Each LED segment represents 25% of the full charge capacity. The definition of LED pattern showed as picture below.

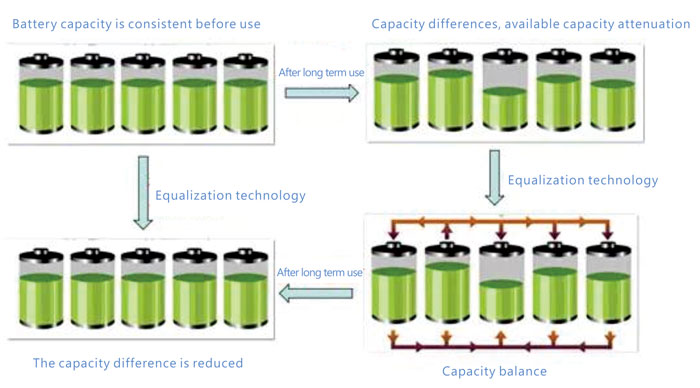

The meaning of battery balance is to control the expected battery deviation by adopting the power electronics technology, so as to ensure that each cell within maintains the same state in the normal usage, preventing the battery from over-charge, over-current.

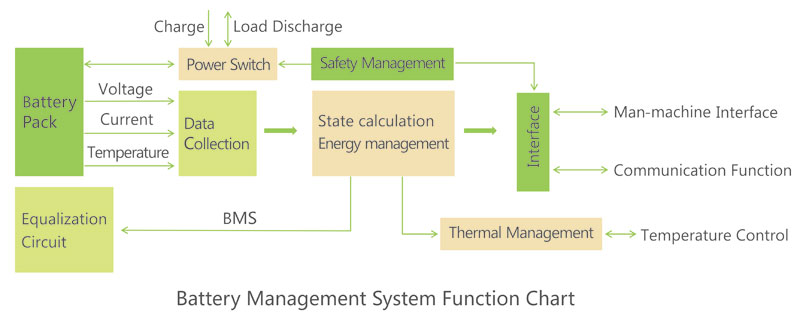

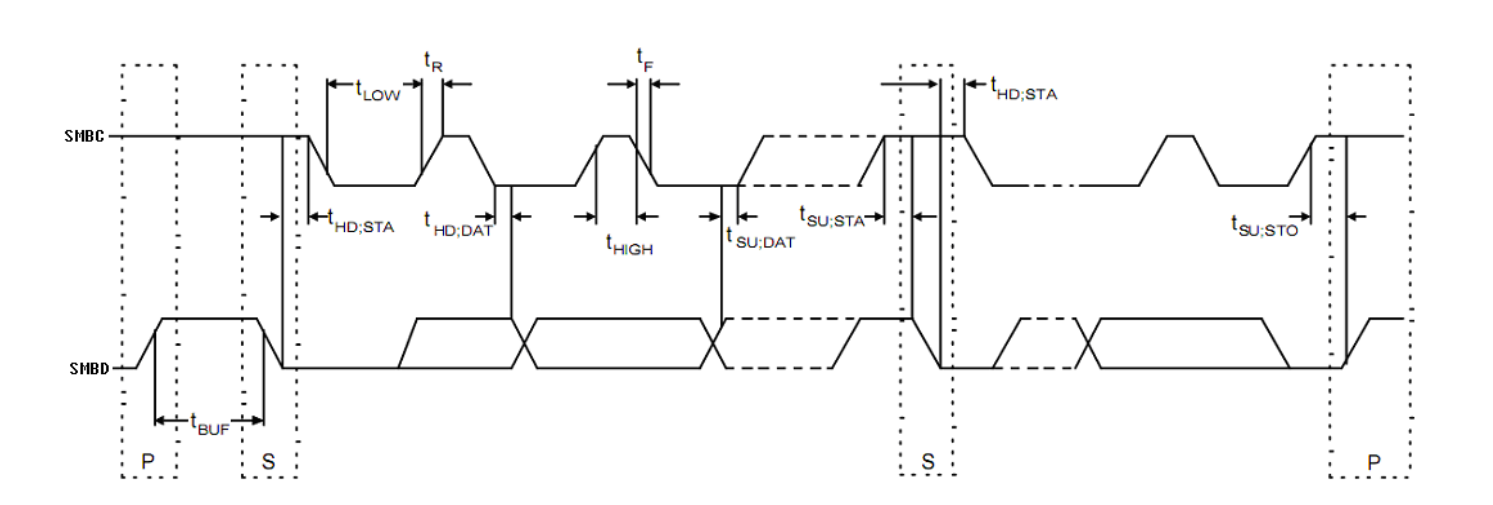

Intelligent management system mainly performs communication function, to read the conversion data and status information, and to control the smart battery management system based on main unit demands. The System Management Bus (SMBus) is two-wire interface, which ensures the mutual communicate among the equipment and other parts of the system.
