Li-SOCl2 Battery + super capacitor are used for high pulse current applications. Use the advantage of
Li-SOCl2 Battery with its high working voltage and capacity as well as the advantage of Super Capacitor
with its high power capability. Li-SOCl2 battery will charge the super capacitor to be used for high
pulse currents (Generally 1 -3A) without severe voltage drop.
Key Features:
1.High energy density and stable working voltage;
2.Safe, low self-discharge rate
3.Wide operating temperature range, long time storage and intermittent pulse charging.
Applications:
Meter Reading, GPS Tracking, Data Communication, Auto Security and etc.

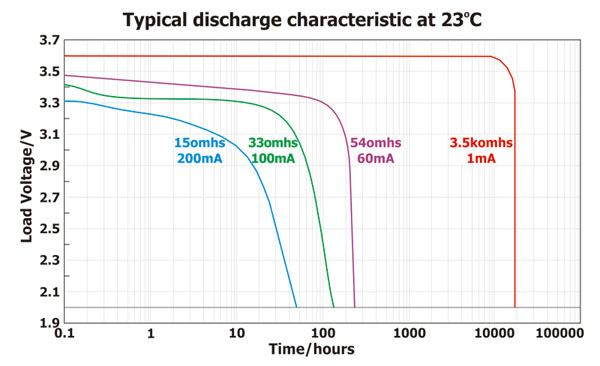

ER34615 discharge curve
The voltage of Li-SOCl2 battery is high,the rated voltage is 3.6V, and the working voltage is stable,more than 90% of the capacity in the high voltage platform output.

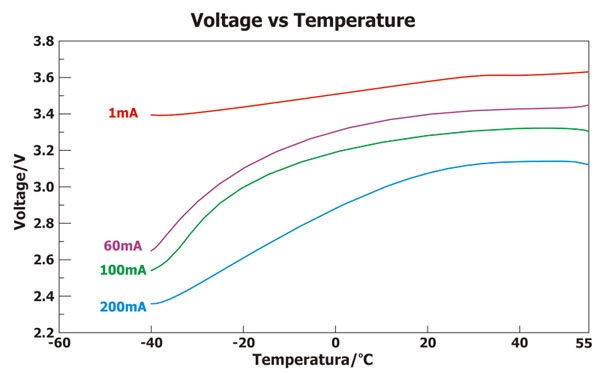

At room temperature, medium current density discharge, the discharge curve is very flat, Li-SOCl2 battery can work in the range
of -40 ~ +85 ℃.The battery capacity at -40 ℃ is about 50% of normal temperature capacity, showing a very good high and low temperature performance.

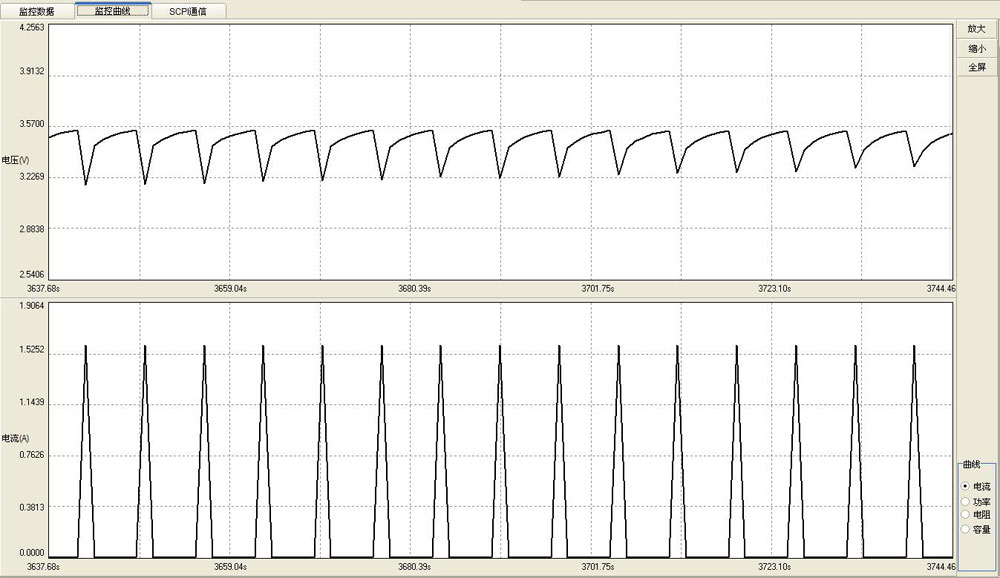

ER34615-1S2P + Super Capacitor SP-5R5-Z405UY pulse discharge curve
Discharge characteristics:
1. ER34615-1S2P + super capacitor SP-5R5-Z405UY in 1.6A 800mS / 6000mS discharge conditions, the minimum load voltage is up
to 3.176V.
2. Amplify the pulse frequency, Li-SOCl2 Bobbin cell + super capacitor gains higher minimum load voltage and better performance.
Common super capacitor model
SP J Sereies ( -40oC ~ +70oC )
Type
Nominal Capacitance
Nominal voltage
ESR
Dimension
Temp
2
2.5
120
10×20
-40℃-70℃
4.7
2.5
60
12.5×21
-40℃-70℃
10
2.5
35
13×34
-40℃-70℃
20
2.5
20
16×34
-40℃-70℃
50
2.5
30
18×34
-40℃-70℃
100
2.5
15
22×45
-40℃-70℃
(F)
(V)
(mΩ)
ФD×L(mm)
SE J Series ( -25oC ~ +70oC )
|
Type |
Nominal Capacitance |
Nominal voltage |
ESR |
Dimension |
Temp |
|
1 |
2.5 |
600 |
8×13 |
-25℃-70℃ |
|
|
2 |
2.5 |
250 |
10×20 |
-25℃-70℃ |
|
|
4.7 |
2.5 |
110 |
12.5×21 |
-25℃-70℃ |
HP LL Series ( -25oC ~ +70oC )
|
Type |
Nominal Capacitance |
Nominal voltage |
ESR |
Dimension |
Temp |
|
1 |
2.7 |
600 |
8×13 |
-25℃-70℃ |
|
|
2 |
2.7 |
250 |
10×20 |
-25℃-70℃ |
|
|
4.7 |
2.7 |
110 |
12.5×21 |
-25℃-70℃ |
|
|
8 |
2.7 |
100 |
12.5×21 |
-25℃-70℃ |
|
|
10 |
2.7 |
60 |
12.5×34 |
-25℃-70℃ |
|
|
20 |
2.7 |
50 |
16×34 |
-25℃-70℃ |
|
|
50 |
2.7 |
60 |
18×34 |
-25℃-70℃ |
|
|
100 |
2.7 |
25 |
22×45 |
-25℃-70℃ |
|
|
200 |
2.7 |
10 |
35×62 |
-25℃-70℃ |
|
|
400 |
2.7 |
10 |
35×62 |
-25℃-70℃ |
HP LR Series ( -40oC ~ +70oC )
|
Type |
Nominal Capacitance |
Nominal voltage |
ESR |
Dimension |
Temp |
|
1 |
2.7 |
300 |
8×13 |
-40℃-70℃ |
|
|
8 |
2.7 |
50 |
12.5×21 |
-40℃-70℃ |
|
|
10 |
2.7 |
25 |
12.5×34 |
-40℃-70℃ |
|
|
20 |
2.7 |
20 |
16×34 |
-40℃-70℃ |
|
|
50 |
2.7 |
25 |
18×34 |
-40℃-70℃ |
SP Z Series ( -40oC ~ +70oC )
|
Type |
Nominal Capacitance |
Nominal voltage |
ESR |
Dimension |
Temp |
|
0.1 |
5.5 |
600 |
6×11×14 |
-40℃-70℃ |
|
|
0.22 |
5.5 |
600 |
7×13×14 |
-40℃-70℃ |
|
|
0.47 |
5.5 |
600 |
9×17×16 |
-40℃-70℃ |
|
|
1 |
5.5 |
240 |
10×21×22 |
-40℃-70℃ |
|
|
4 |
5.5 |
100 |
13×26×23 |
-40℃-70℃ |
SE Z Series ( -25oC ~ +70oC )
|
Type |
Nominal Capacitance |
Nominal voltage |
ESR |
Dimension |
Temp |
|
0.1 |
5.5 |
1400 |
6×11×14 |
-25℃-70℃ |
|
|
0.22 |
5.5 |
1200 |
7×13×14 |
-25℃-70℃ |
|
|
0.47 |
5.5 |
1200 |
9×17×16 |
-25℃-70℃ |
|
|
1 |
5.5 |
500 |
10×21×22 |
-25℃-70℃ |
|
|
4 |
5.5 |
200 |
13×26×23 |
-25℃-70℃ |
* Above product list is part of our products, for more products please contact us
